| Dimension (LxWxH) |
170x80x132.7 (mm)
|

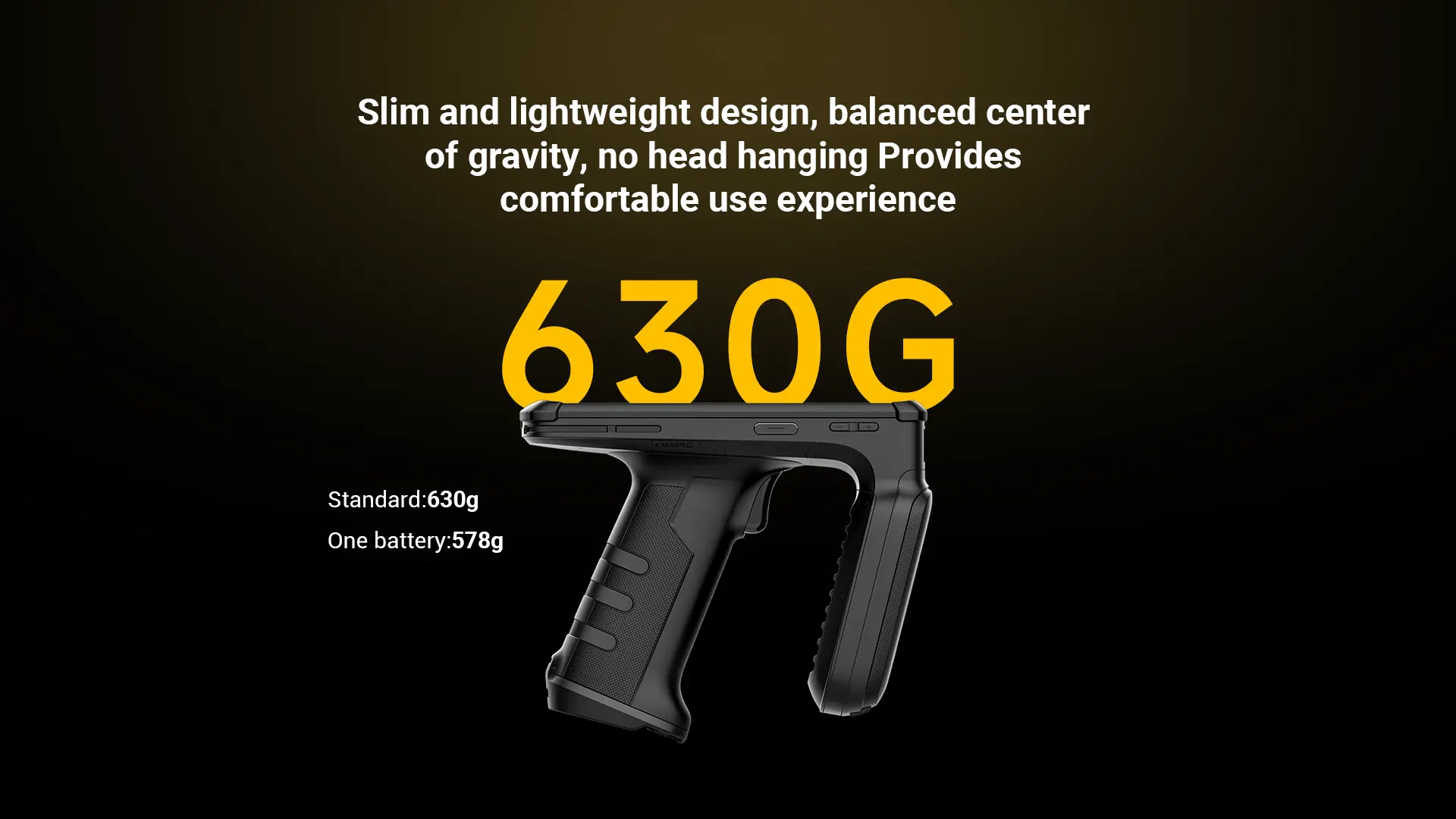

| Weight |
630 g with battery
|
| Display |
5.5 in. display with capacitive touch, 1440(H)×720(W)
|
| Power |

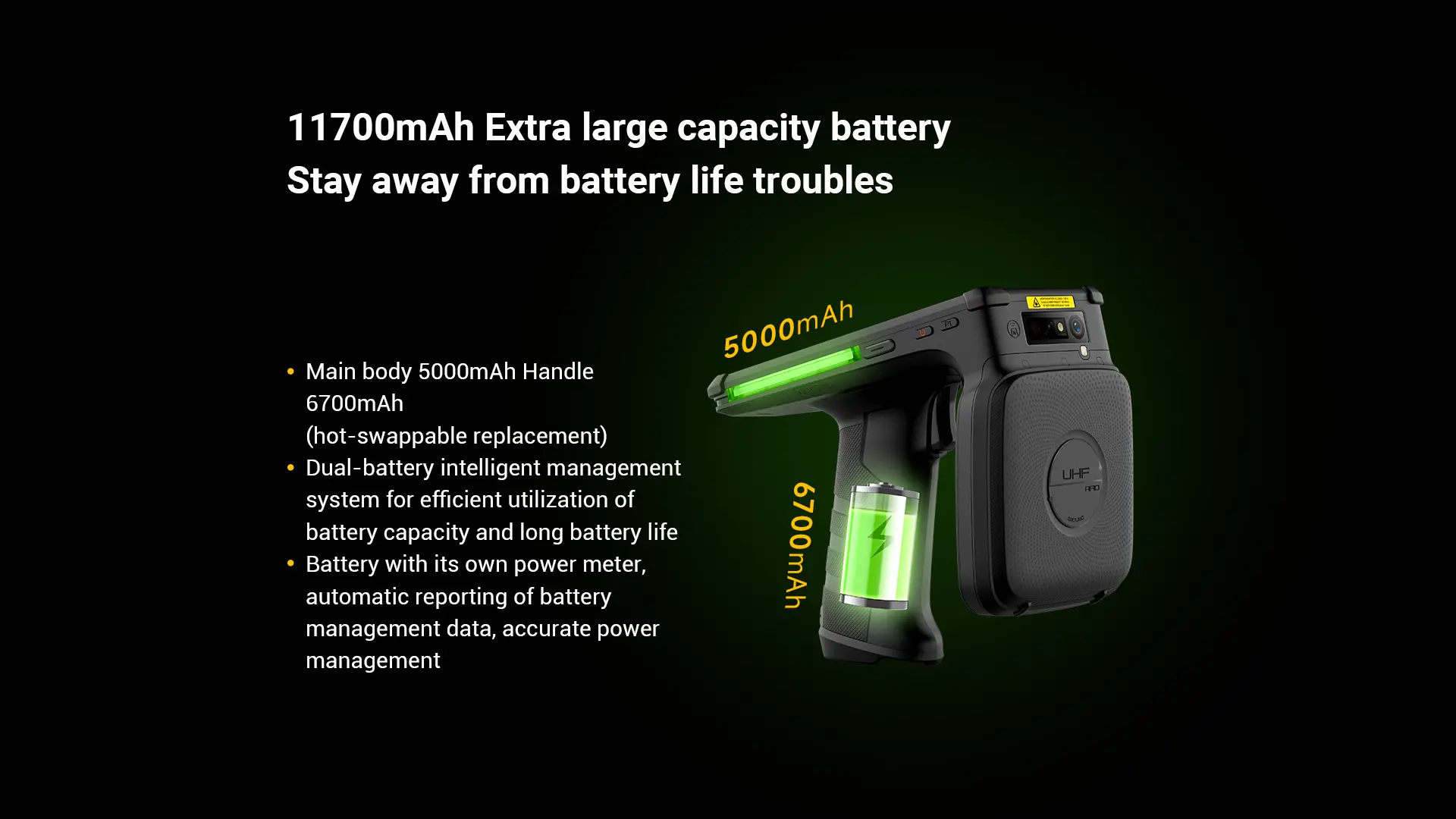

≧11700mAh (Main unit 5000mAH + Handle 6700mAh replaceable)
Bottom Type C USB port, support QC3.0 fast charging, intelligent recognition of PC and charger
|
| SIM Card Slot |
SIM+TF
|
| Expansion Slot |
Micro SD Card, compatible up to 256GB
|
| Interface / Communication |
Waterproof Type C USB interface, support USB2.0 HighSpeed, support OTG
|
| Notifications |
Sound, vibration, LED indicator light
|
| Buttons |
Power + Volume (+, -) + UHF + SCAN + Custom + On / Off button
|
| Voice and Audio |
Built-in single speaker, built-in dual microphones (with noise cancellation)
|

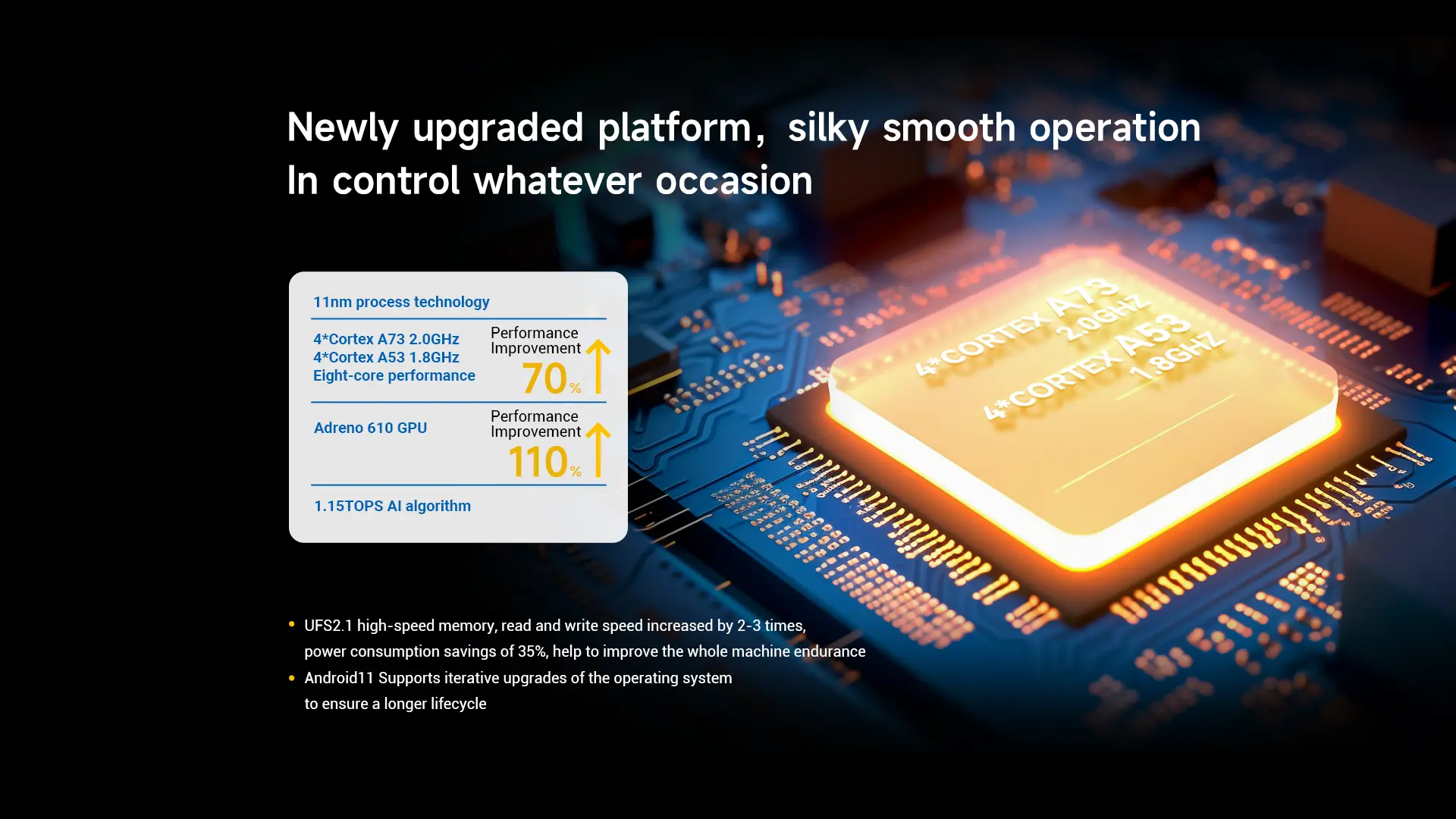

| CPU |
Octa core 2.0GHz
|
| Operating System |
Android 11
|
| Memory |
4GB RAM / 64 GB Flash memory (optional 8GB+128GB)
|
| Operating Temp. |
-4℉ / -20°C to +122℉ / +50°C
|
| Storage Temp. |
-40℉/-40°C to +140℉/+60°C(include battery)
-40℉/-40°C to +158℉/+70°C(no battery)
|
| Humidity |
5% to 95%, non-condensing
|

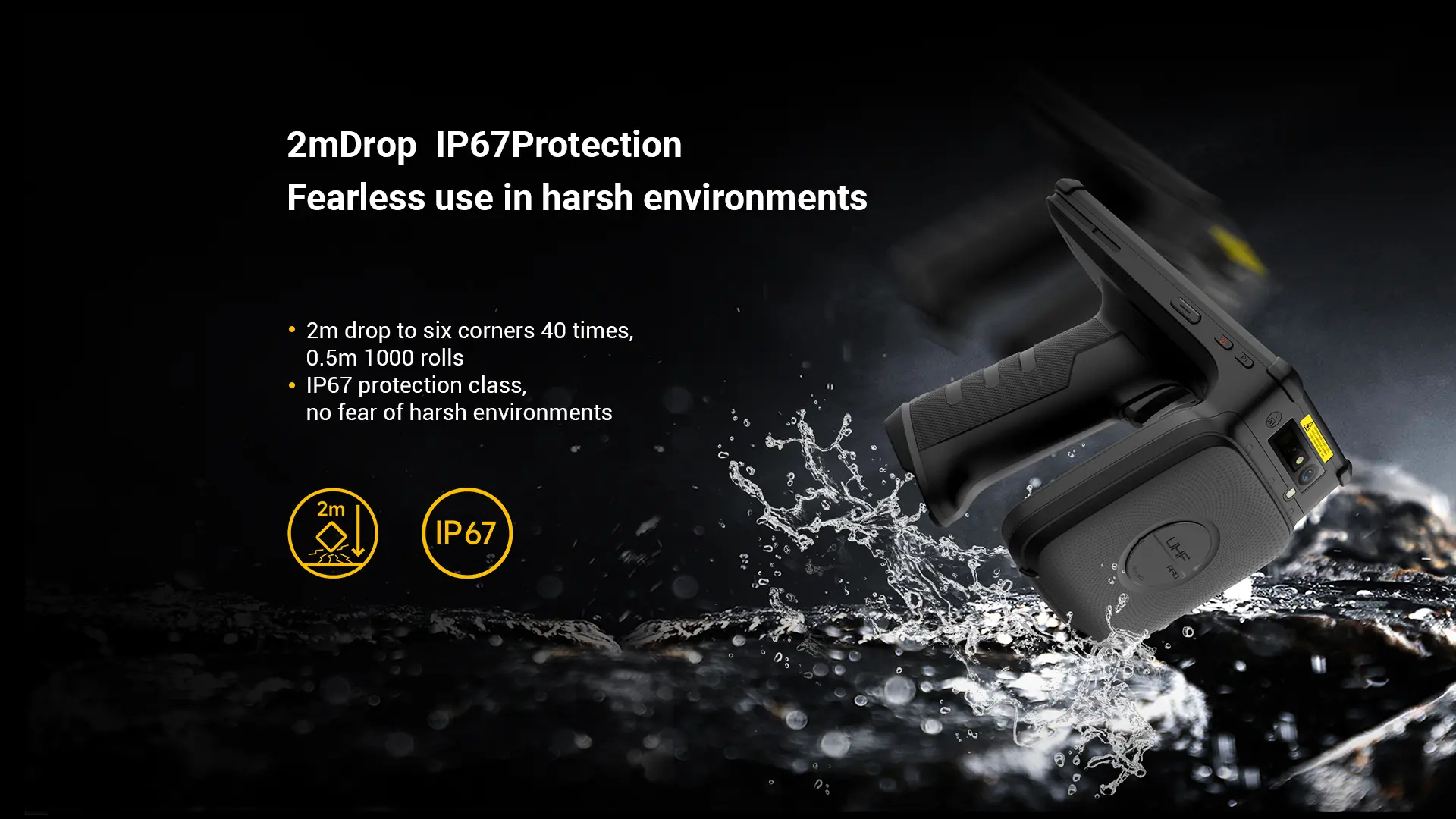

| Drop Spec |
Multiple drops from 6.6 ft./2.0 m
|
| Sealing |
IP67
|
| Electrostatic Discharge (ESD) |
±15kV Air discharge, ±8kV direct discharge
|
| Sensor |
G-sensor, light sensor, distance sensor, electronic compass, gyroscope
|

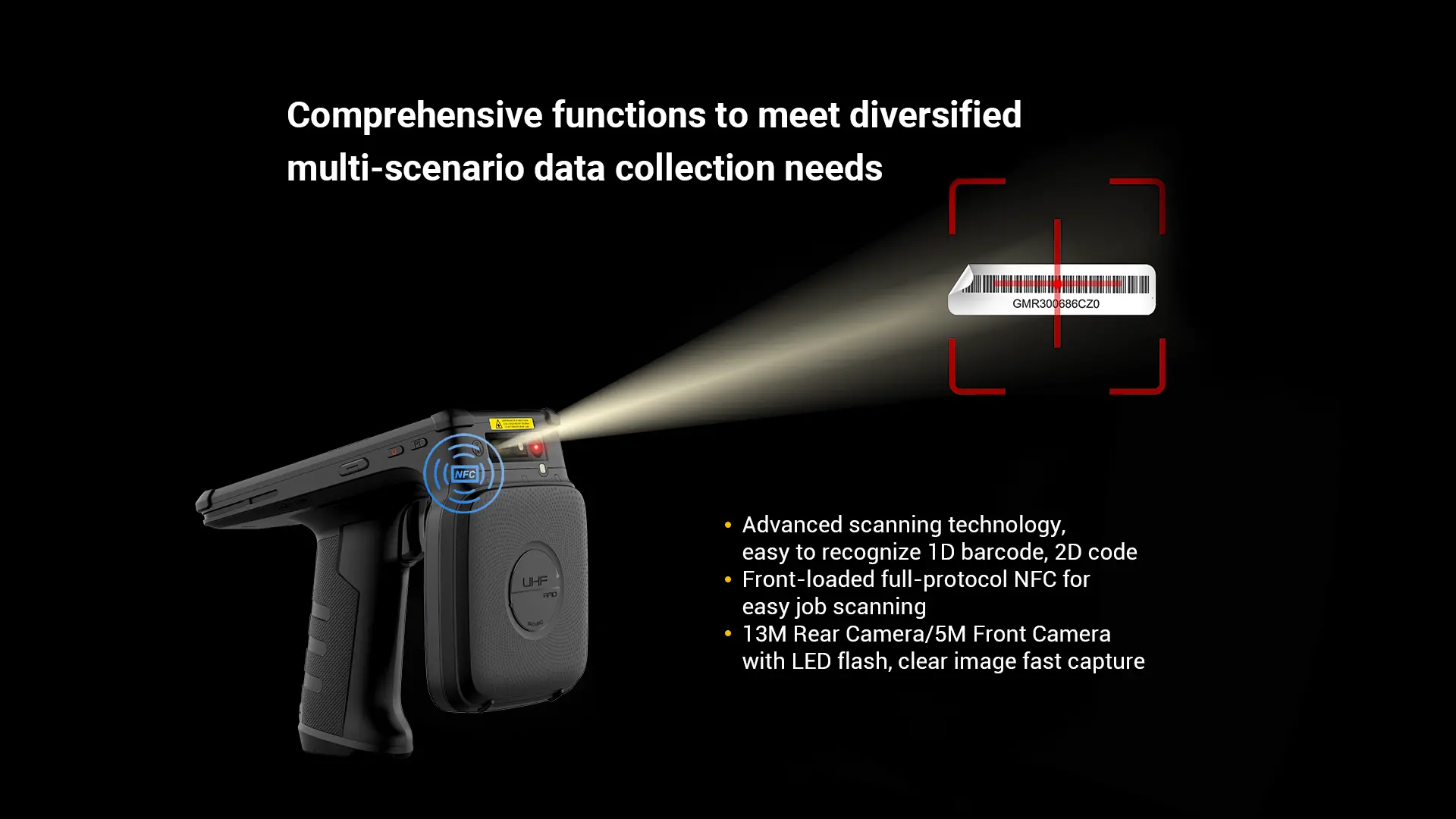

| Scanning |
Standard range 2D imager scan engine
|
| Front Camera |
Fixed focus. 5MP
|
| Rear Camera |
Auto-focus, 13 MP, support double flashlights, PDAF phase focusing
|
| Read-write tag (NFC) |
Support ISO15693, ISO14443A/B (without encryption protocol), and support NFC protocol
|
| Frequency (NFC) |
HF Frequency 13.56MHz
|
| Reading distance (NFC) |
ISO15693 typical value >5cm, ISO14443A typical value >4cm, ISO14443B typical value >1.5cm (label related)
|

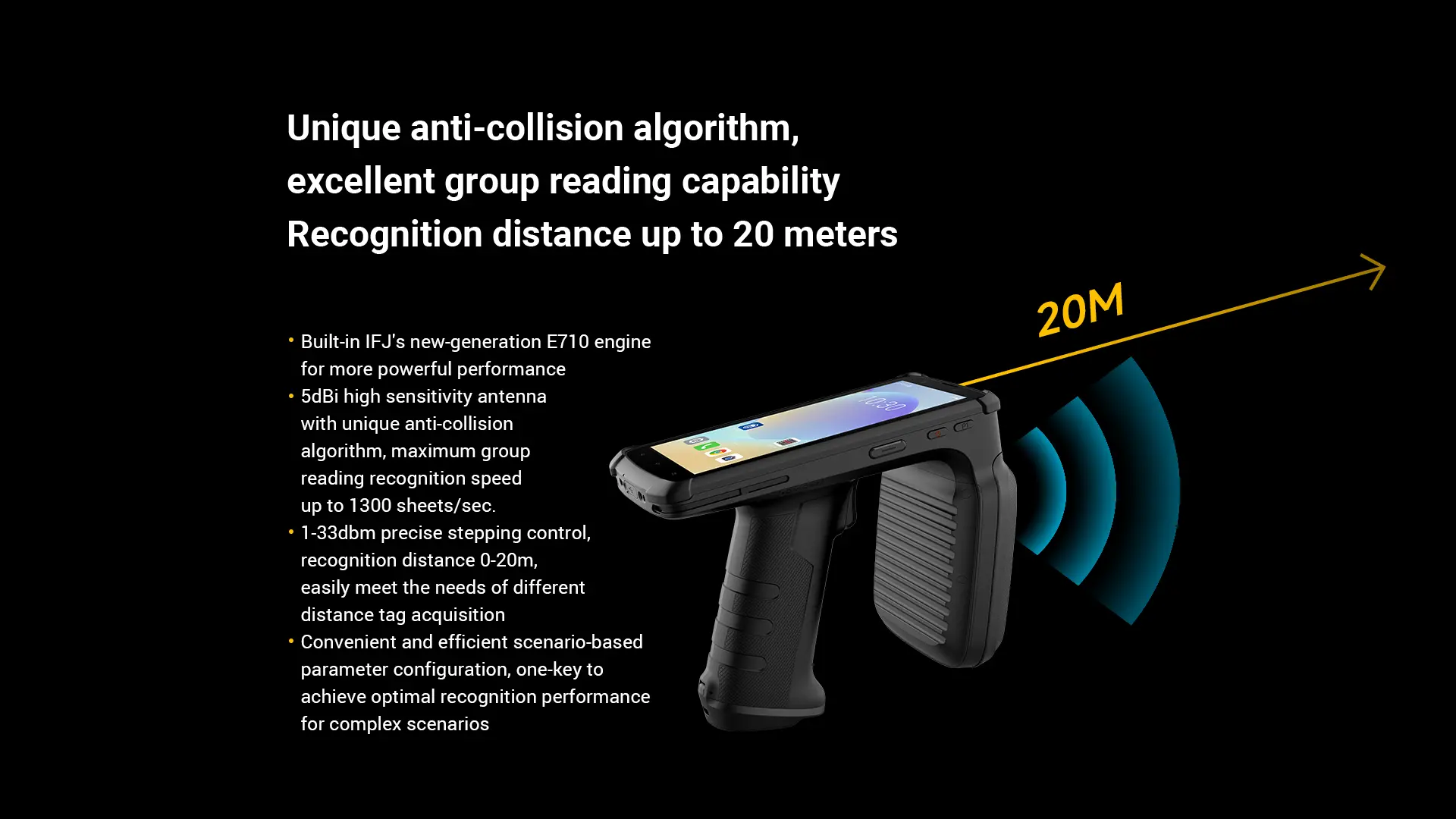

| Read-write tag (UHF) |
Conforms to ISO-18000-6C/EPCC1G2
|
| Antenna Parameter (UHF) |
5dBi circular polarization, default 902-928MHz
|
| Frequency (UHF) |
840-960 MHz (customized according to country's regional regulations), default 902-928 MHz
|
| Operation Mode |
Operates as a frequency hopping spread spectrum (FHSS) or fixed frequency transmission mode
|
| Output Power |
1~33dBm
|
| Writing Distance |
0-6m@9662 white card (practical distance subject to label and environment)
|
| Group Reading Speed |
Achieve 1300 frames/sec @impinjH47 (practical distance subject to label and environment)
|
| Reading Rate |
12 ms per separate character (32bits) on average
|
| Writing Rate |
60 ms per separate character (32bits) on average
|
| Power Consumption |
less than 8W (average)
|
| Positioning System (GPS) |
GPS+GLONASS+Beidou, support AGPS
|
| Frequency (GPS) |
GPS: L1/L5
Beidou: B1
GLONASS: L1/L5
|
| Accuracy (GPS) |
5-10meter (OPEN SKY)
|
| Fingerprint (option) |
Refer to the specifications for detailed parameters
|

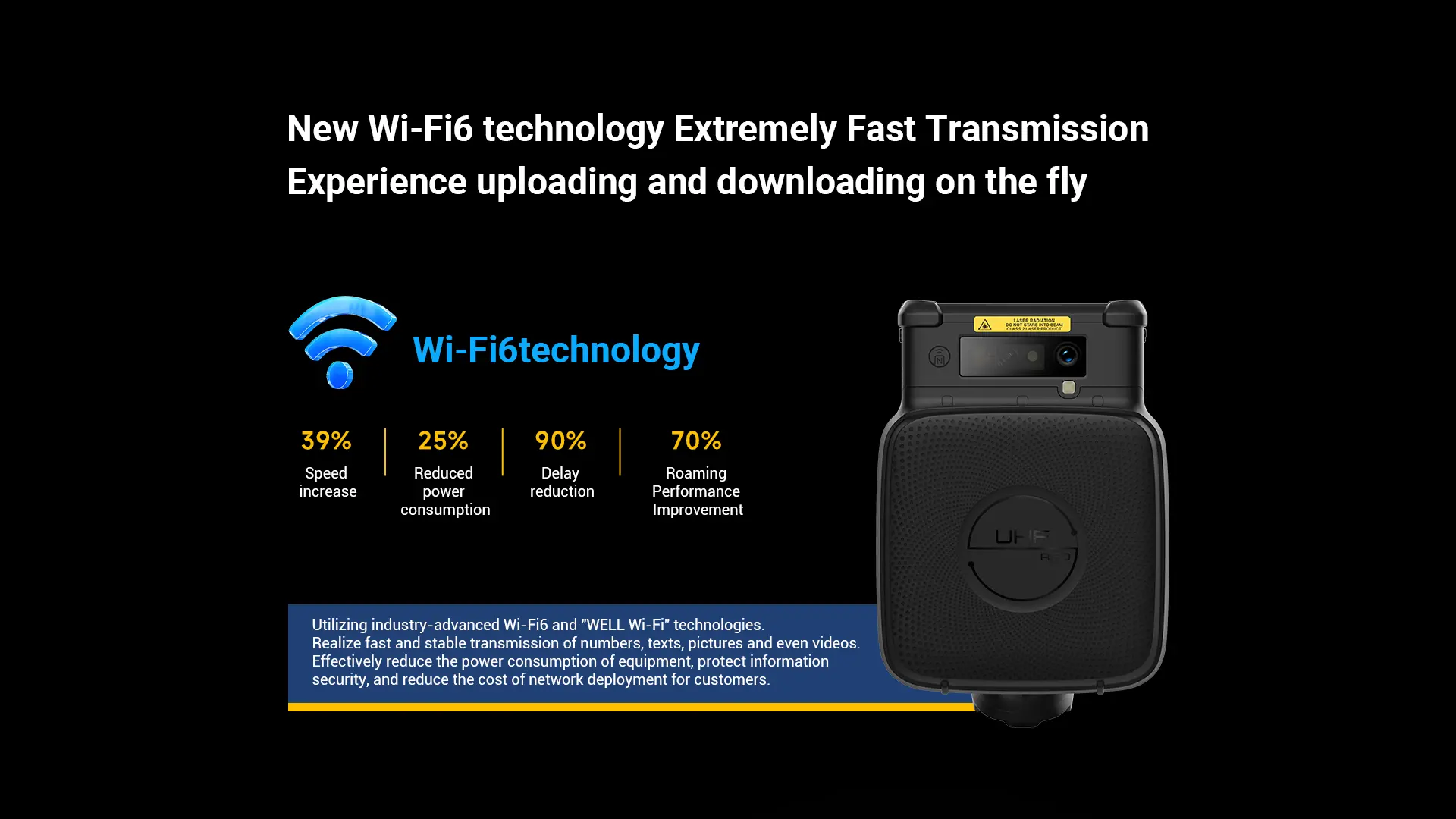

| WLAN-Protocol |
IEEE 802.11a/b/g/n/ac/ax
|
| WLAN-Frequency Range |
Depending on the country (region), 2.4GHz is 2.412GHz-2.472GHz; 5GHz is 5.170GHz-5.825GHz
|
| Security of WLAN |
Refer to the specifications for detailed parameters
|
| WWAN-Network |
Refer to the specifications for detailed parameters
|
| Accessories - Standard |
Power adapter×1, Type C data communication cable×1
|
| Accessories - Additional |
Single device charging cradle, quad battery charger, grip battery, and hand strap
|
